Right Angle Gearbox — Susceptible failure to the right angle gear box   SB 206.1

Service Bulletin: SB 206.1

Subject: Right Angle Gearbox — Susceptible failure to the right angle gear box

Recommendations:

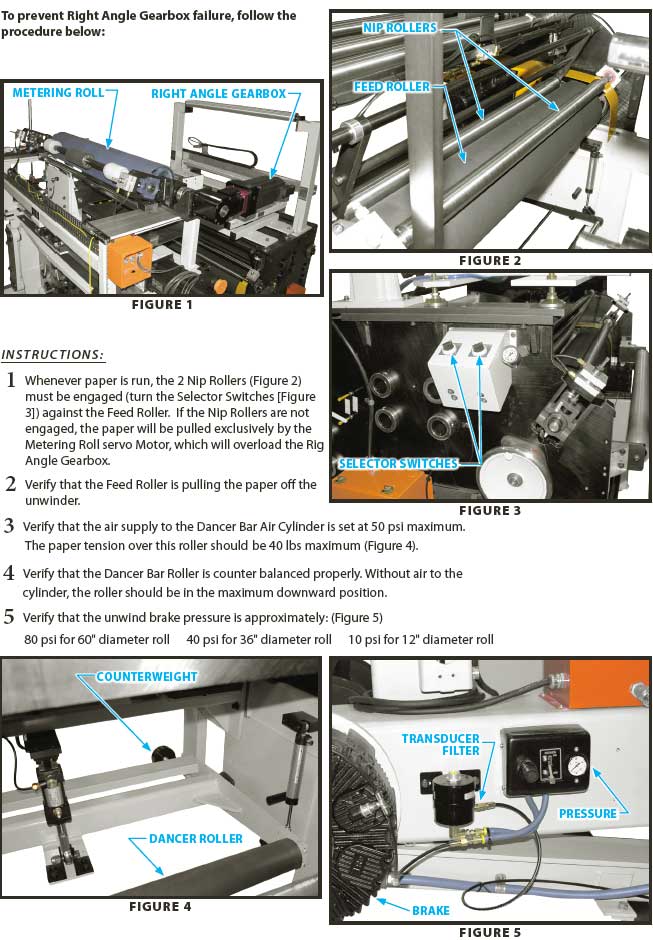

The Right Angle Gearbox that drives the Metering Roll is susceptible to failure if the paper is not properly pinched against the Feed Roll.

CONTACT: Parts orders and customer communication can be made using telephone, FAX, or e-mail. Contact can still be made using the main telephone switchboard at 414-354-8050 or FAX number 414-354-8614. Sending a FAX directly to the Service Department, at 414-354-1710, will convey a faster response. If using e-mail and no response is made within 3 working days, please contact via phone or FAX.

Parts orders can be directed to Holly Warner or Vicky Alcaraz using telephone, FAX, or e-mail. Please make sure to carbon copy (CC) both Holly Warner and Vicky Alcaraz in all e-mails containing parts orders. Service issues can be directed to Steve Evans or Mike Ferguson and electrical issues to Larry Spencer.
