(Pre)Greasing the Bottom Finish Station   SB 210.1

Service Bulletin: SB 210.1

Subject: (Pre)Greasing the Bottom Finish Station

Recommendations:

Paper Machinery Corporation has implemented a new technique for Pre-Greasing all Ramp Style Bottom Finish Stations, purchased as a Service Order. All Ramp Style Bottom Finish Stations, purchased as a Service Order, will now be pre-greased at PMC, prior to shipping.

To Determine Whether the Station is Pre-Lubricated, proceed as follows:

NOTE: THE TOOLING MUST BE INSTALLED BEFORE STARTING THIS PROCEDURE!

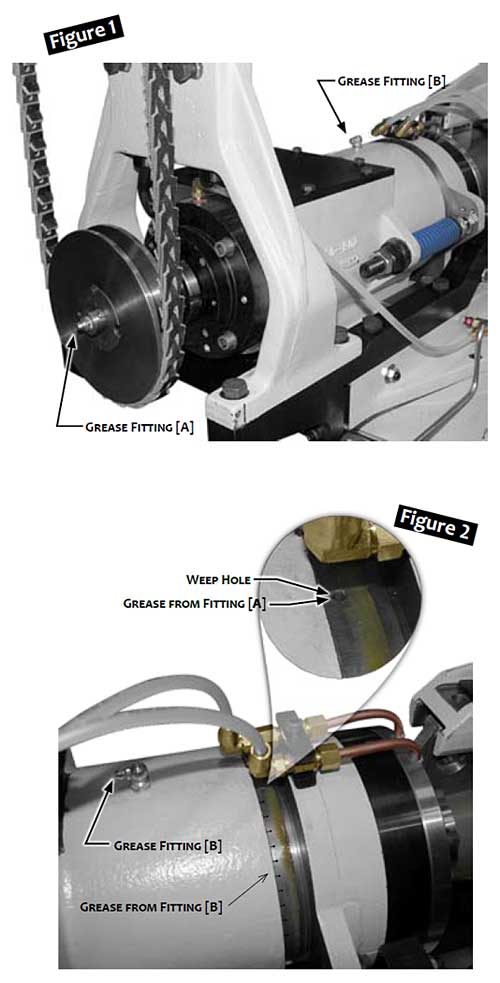

  1. Filled with the recommended grease (Lubriplate 1200), attach a grease gun to Grease Fitting [A]. See Figure 1.
  2. Pump the grease gun once. Grease should come out of the Weep Hole. See Figure 2.
  3. Using the same grease gun, attach to Grease Fitting [B].
  4. Pump the grease gun once. Grease should come out between the casting and the station head (around the circumference of the station head). See Figure 2.

If the above procedure fails to produce the desired results, this would indicate that inadequate or no grease was applied to the station. Continue applying grease to the fittings until results are achieved.

NOTE: Applying grease to Fitting [A] has no effect on the station tooling; the tooling is lubricated separately. For further information on this, see Service Bulletin #184.3.

SB210-1

CONTACT: Parts orders and customer communication can be made using telephone, FAX, or e-mail. Contact can still be made using the main telephone switchboard at 414-354-8050 or FAX number 414-354-8614. Sending a FAX directly to the Service Department, at 414-354-1710, will convey a faster response. If using e-mail and no response is made within 3 working days, please contact via phone or FAX.

Parts orders can be directed to Holly Warner or Vicky Alcaraz using telephone, FAX, or e-mail. Please make sure to carbon copy (CC) both Holly Warner and Vicky Alcaraz in all e-mails containing parts orders. Service issues can be directed to Steve Evans or Mike Ferguson and electrical issues to Larry Spencer.
