PMC CS 251 Counter Stacker

PMC CS 251 Counter Stacker

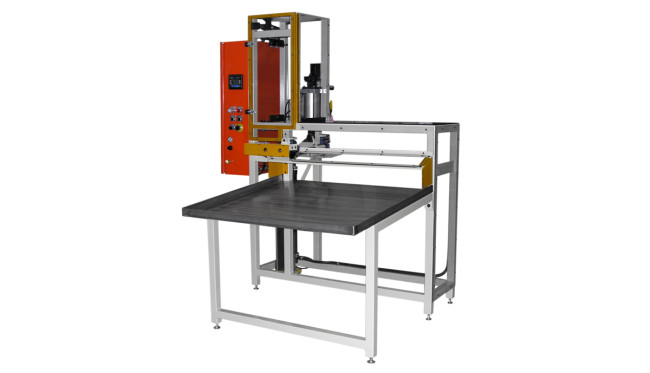

The PMC CS 251 Counter Stacker is designed for in-line production with Paper Machinery Corporation’s cup and container forming machines. The PMC CS 251 automatically collects, counts and stacks cups and containers in a wide range of sizes.

The PMC CS 251 accommodates the maximum output of our PMC 1002, PMC 1250 and OW 800 machines. Cups are fed from the forming machine through pneumatic tubing to the PMC CS 251, placing counted cups into horizontal stacks ready for manual bagging or packing. Cup size changeovers are made in just twenty minutes without any part changes.

Specifications

  • Production Rate

    Up to 330 cups/containers per minute

  • Cup Size Range

    3 oz. through 46 oz.

  • Cup Rim Diameter Range

    2" (50.8mm) through 5" (127mm)

  • Cup Stack Count Range

    25 through 100 cups

  • Cup Stack Height Range

    7.5" through 36"

Applications

PMC CS 251 Counter Stacker

To learn more about PMC's fast, productive, flexible line of container forming machines, contact us at sales@papermc.com.
