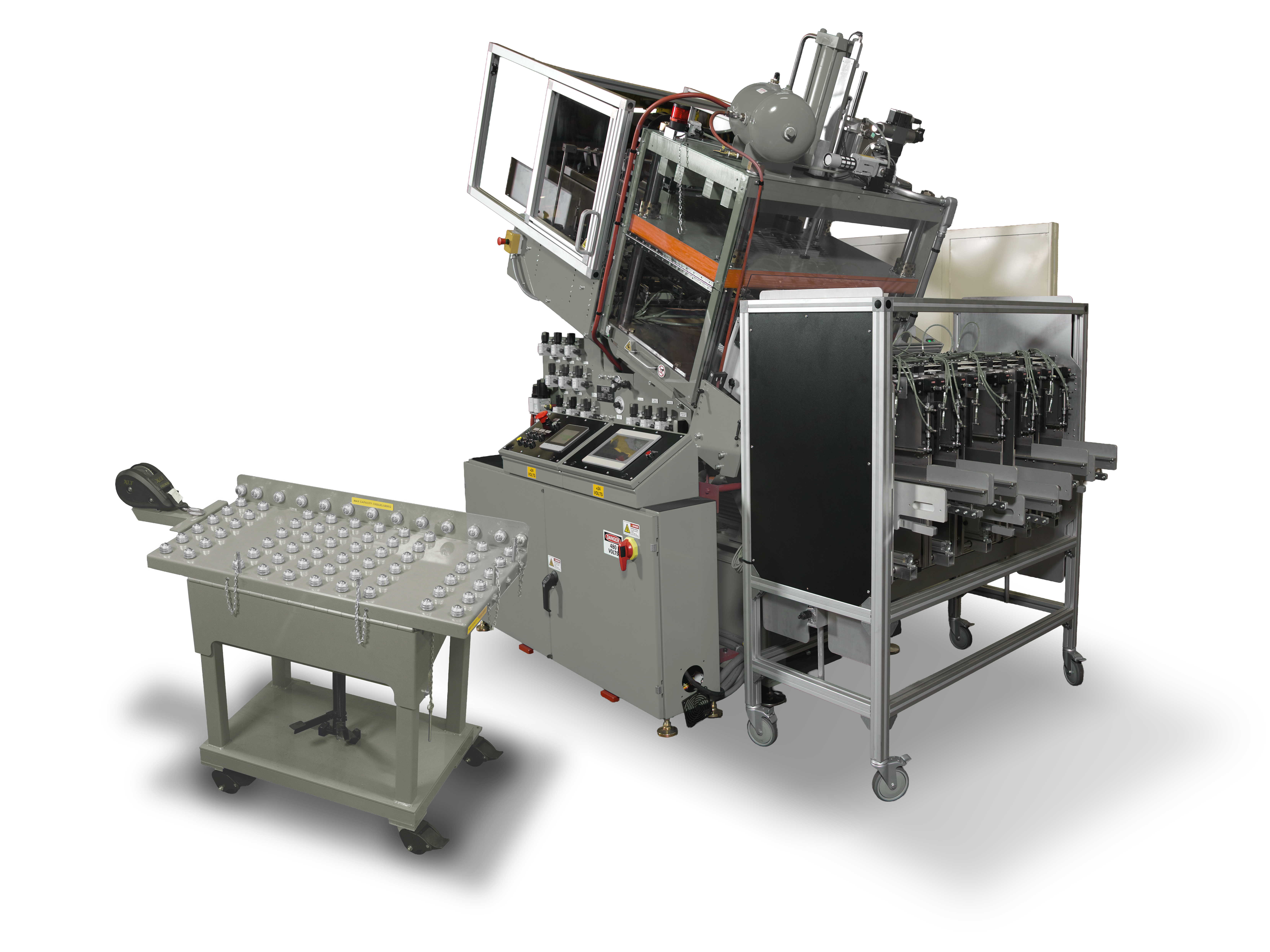

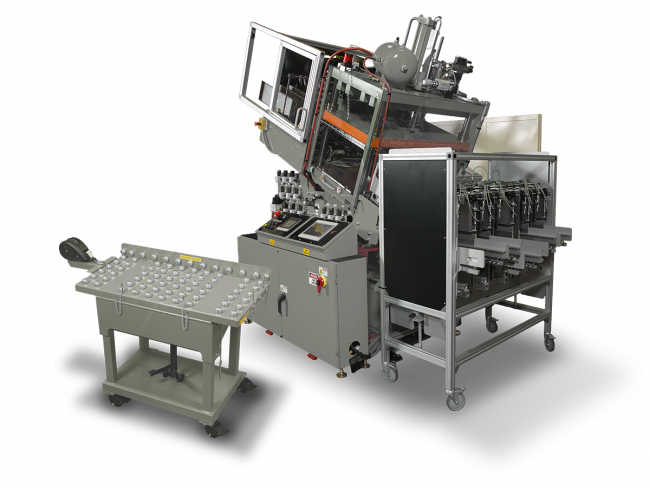

Thermoformer Stacker Cart

TP3820 Paper Thermoforming Press

The Thermoforming Press offers a high‑efficiency solution for tray production, featuring a blank feed system that leverages existing printing and die‑cutting assets to maximize operational value. It produces up to 250 trays per minute with adjustable dwell, stroke height, and forming force for precise control across applications. An intuitive HMI touchscreen simplifies operation, while the machine’s ability to simultaneously produce multiple tray sizes adds flexibility. Designed to run both solid board and corrugated materials, it delivers consistent performance for a wide range of packaging needs

Specifications

  • Max Depth

    4 in (102 mm)

  • Max Stroke

    14 in (356 mm)

  • Forming Die Orientation

    Female Top

  • Part Eject Method

    Via Draw Ring

  • Approximate Machine Weight

    9,400 lbs (4,264 kg)

  • Approximate Die Cart Weight

    1,000 lbs (454 kg)

Applications

  • Blank feed utilizes existing printing and die cutting assets
  • Produces up to 250 trays/min *50 SPM, 5 LANES
  • Adjustable dwell & stroke height
  • Adjustable force
  • HMI touchscreen
  • Capable of simultaneously making multiple sizes

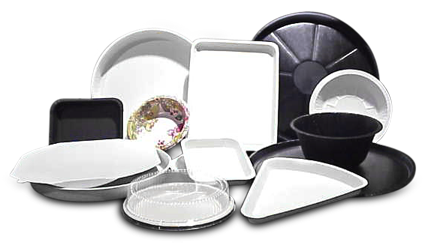

  • Produces trays from solid board or corrugated materials
TP3820 Paper Thermoforming Press

To learn more about PMC's fast, productive, flexible line of container forming machines, contact us at sales@papermc.com.
