Transfer Turret Lower Assembly — Upgrade   INST 226.1

Service Bulletin: INST 226.1

Subject: Transfer Turret Lower Assembly — Upgrade

Recommendations:

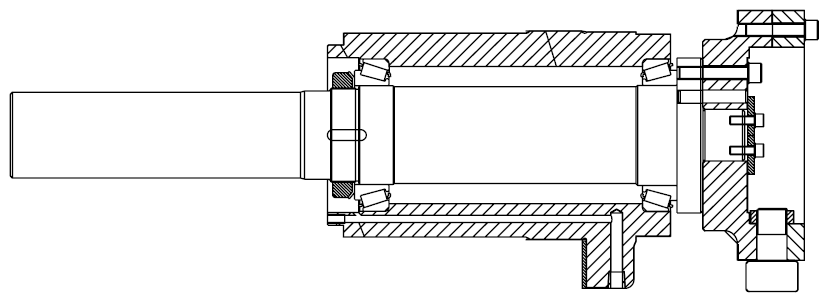

Paper Machinery Corporation has recently developed an improved Transfer Turret Lower Assembly for the PMC-1002 model machine. This incorporates a larger Stud Follower with a solid shaft. PMC Cam Follower (#BR16011) with Follower Nut (#111-430) is mounted on the new Cam Follower Plate (#321-614). The new Transfer Turret Lower Assembly, part #507-505, will directly replace part #502-648. Or a new Transfer Turret Cam Follower Plate Assembly (#824-941) onto existing Shaft and Housing. Please contact PMC’s Service Department (listed below) for Parts Orders or for further information
